C++ reverse engineering with only specific files

Choosing instant reverse I can only determine a whole folder to import. It will include all subfolders and all files.

In some cases it’s allmost impossible as some files create problems, I would like to exclude them. The same for some subfolders that contain huge number of files.

I don’t find the option in reverse engineering dialog, am I missing something?

Thanks in advance.

Hi Valgevali,

Thanks for your post. I’ve forwarded the issue to our engineers to follow-up, if there is any news on this issue, I’ll notify you at once.

Best regards,
Lilian Wong

Hi Valgevali,

Sorry for the delay. I would like to let you know that we support excluding source files for Instant Reverse in the new version, VP-UML 7.0 which is released yesterday.

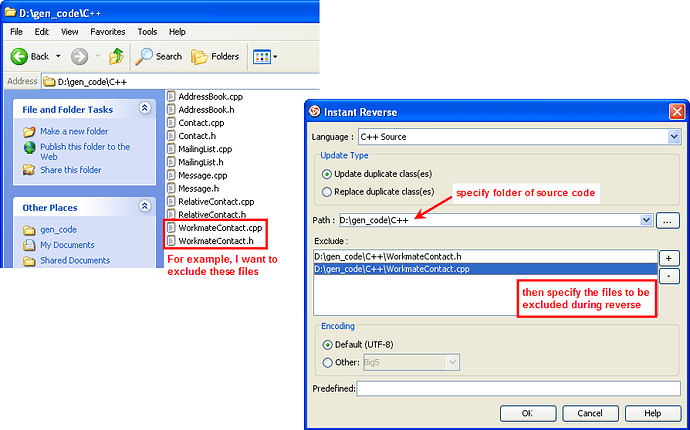

In the new version, you can specify the source code files in the Instant Reverse dialog - you can refer to the image below.

You can download the new version and request evaluation key from the following link:

BTW, if you are interested in the new feature and enhancements in the new version, please visit:

Best regards,
Lilian Wong
