Connector Routing

[Anonymous]

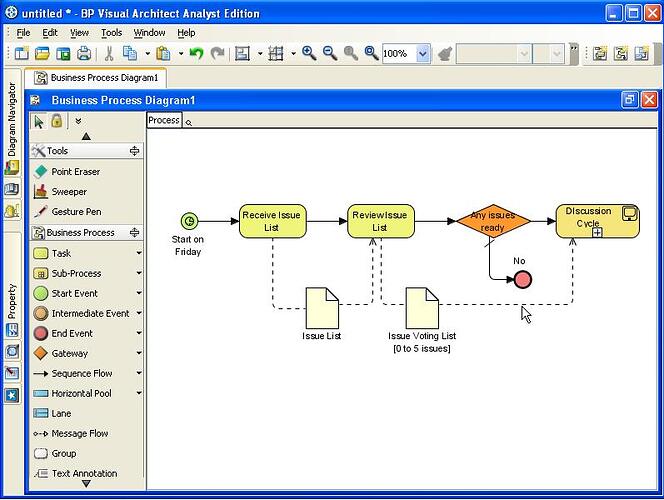

I’m trialing the BP-VA. In this demo each connector line follows a separate route, i.e. they do not overlap and the diagram looks quite nice:

[url]http://www.visual-paradigm.com/product/bpva/tutorials/startofprocess.jsp[/url]

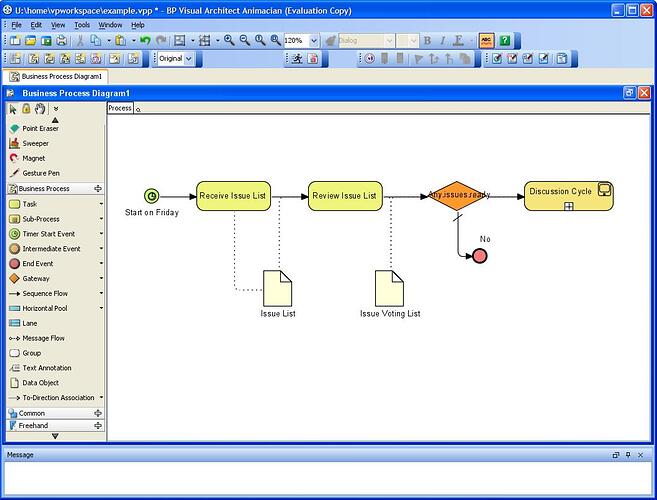

However when I attempt this my connectors always overlay each other. Is this a bug or can anyone tell me where I am going wrong?



[LilianWong]

Hi user,

Thanks for your post. You can manually move the connector to form your desired layout. Alternatively, you can run connector layout on BPD by right-click on the BPD and select Layout > Route Connectors (Orthogonal) in the popup menu. In this way you should find the connectors not overlapping together anymore.

Hope this helps.

Best regards,
Lilian Wong
