Please talk me! how do - use sde - in class diagrams - paint my class implements java.util.Iterator

General Questions/Discussions
#1

please talk me! how do - use sde - in class diagrams - paint my class implements java.util.Iterator interface!

3Q

#2

Hi Ghyghost,

Thanks for your post. You can run Instant Reverse to reverse the source which contains the java.util.Iterator interface, as the following steps:

  1. run Instant Reverse for Java and select the source
  2. under the Instant Reverse node in Class Repository, you can see the available classes in the source (at this moment, the classes are not really reversed to your project yet)
  3. select the class(es) under the Instant Reverse node, right-click on it (them) and select Reverse to > Class Repository
  4. after that the class(es) will be really reversed to your project file

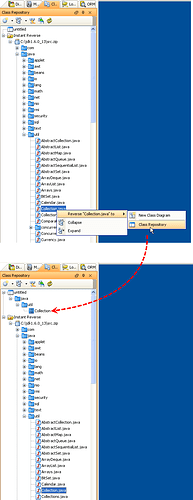

    (You can refer to the attached image)

Then you can implement the interface java.util.Iterator. Hope this helps.

Best regards,
Lilian Wong

reverse_specific_class_from_source.png564×1454 88 KB
