UML Elements Repository in VP

modeling

#1

I’m new to VP.
Wonder if there is a way to create a repository for UML elements that can be reused across different UML diagrams?

I imagine for example to create a repository for all UML Actors elements in one place and than just re-use them across different UML diagrams.

Is this something that can be done in VP ?


#2

Hi Hakim,

We already have such a repository for storing model elements, and they are accessible via the Model Explorer. To show the Model Explorer, simply click View > Panes > Model Explorer from the toolbar.

model_explorer

This article teaches you how to reuse model elements using the Model Explorer:

And with lots of model elements in the repository, you’ll likely want to organize them better. Visual Paradigm suggests using Model to group related model elements, here is an article that teaches how (it uses Project Browser, but working with Model Explorer is very similar):

Hope you would find these resources useful.

Best Regards,

Antony.


#3

Welcome then! I hope you’re enjoying the software so far :slight_smile:

@antony already showed you a very good way, I’d like to demonstrate yet another (Visual Paradigm is extensive like that, there are often more than one solution to a problem! :dark_sunglasses: ).

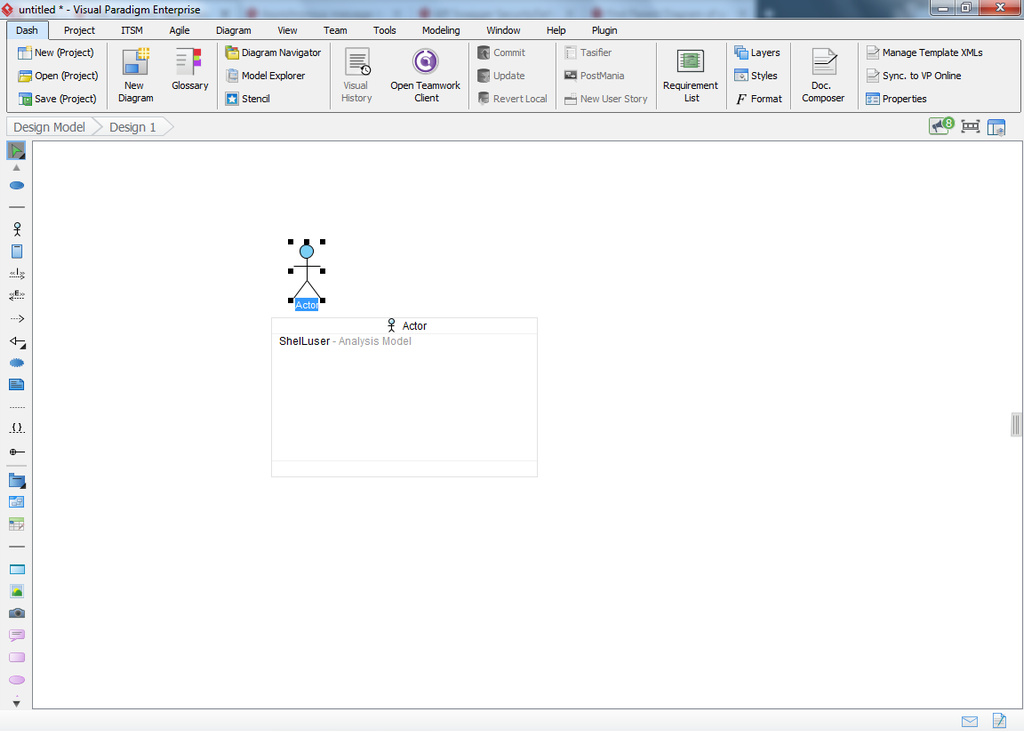

See, the repository which Antony showed above can also be used “on the fly”. And all it takes is pressing control-space instead of entering a name for your model element:

In this project I just made a (small) Use Case diagram in another model (using the project browser’s ‘Model structure’ tab), and in the picture above I’m starting a new diagram. I double clicked on the canvas to open the Resource Catalog, I selected the actor model but then I did something special: instead of entering a new name I pressed control-space, see above.

What this does is list every other related model element in your project. In my case this is an actor I named after myself. So if I want to re-use this element all I have to do is press cursor down to select it, and press enter (or you can click on it too of course).

This is an even faster way of reusing your items. And the best part (in my opinion) is that you don’t even have to think about what to use, because VP will ensure that you only get to see relevant models.

Hope this can help too!


#4

Appreciated,
Thank you
